Endoscope drain pipe inspection camera SD-1050 for contractor companies

Endoscope drain pipe inspection camera SD-1050 for contractor companies
Endoscope drain pipe inspection camera SD-1050 for contractor companiesEndoscope drain pipe inspection camera SD-1050 for contractor companiesEndoscope drain pipe inspection camera SD-1050 for contractor companiesEndoscope drain pipe inspection camera SD-1050 for contractor companies
group name
Pan/Tilt Push Camera P50
Min Order
1 piece
brand name
SROD
model
P50
Nearest port for product export
Shenzhen Fob, Hongkong Fob
Delivery clauses under the trade mode
FOB, CIF, EXW, Express Delivery
Acceptable payment methods
T/T, MoneyGram, Westem Union, Escrow
Export mode
Export through agents
update time
Mon, 08 Jun 2020 15:50:57 GMT

Paramtents

  • Type Digital Camera

  • Style Push sewer inspection Camera

  • Sensor CCD

  • Technology Pan / Tilt / Zoom

  • Special Features Waterproof / Weatherproof

  • Horizontal resolution 480TVL

  • Focus Manual

  • Pan/Tilt Pan:360degrees; Tilt: 180degrees

  • Camera diameter 50mm

  • Water-resistance level IP68

Packging & Delivery

  • Min Order1 piece

Briefing

Pan/Tilt Sewer Inspection Camera
1.With Camera Bracket
2.Sonde Optional
3.Sunlight Viewable LCD
4.Strong Illumination

Detailed

Endoscope drain pipe inspection camera SD-1050 for contractor companiesEndoscope drain pipe inspection camera SD-1050 for contractor companiesEndoscope drain pipe inspection camera SD-1050 for contractor companies



The P-50A pipe inspection camera boasts the most dependable push rod inspection camera system from China,featuring 700TVL pan/tilt camera head,a robust cable reel,a state-of-heart-art LCD monitor,camera centering brackets and optional sonde and locators for pinpoint locations of buried pipes and utilities. With protection-to-guiding spring on the head,this camera can handle video survey job for pipes with 90-degree bends. To locate sewer-line block,structure fracture or bad joints, illumination is a crucial factor to evaluate the complete system.P-50A has 18 Ultra -bright dimmable led lights to ensures every part of the inner pipe wall is perfectly and non-shadow illuminated. Made with cutting-edge technology,this compact and versatile push camera ensures you a 30 percent less system break down,meaning your workers can do more work and an enlarged revenue for your company.


Application

This push camera is usually for pipes diameter from 60mm to 400mm.

Model

P-50A

Camera

CCD Type

SONY CCD

Horizontal resolution

480TVL

Diameter

50mm

Pan &Tilt

Pan: 360degrees; Tilt: 180degrees

Auto level

Auto

Focus

Manual

Optical system

2.8mm

LED Lights

LED Lights

Bright 18 pcs  LED SMD

Brightness of the LEDS

Controllable

Display&Storage system

Size of the screen

5.7’’ TFT Monitor

Brightness

500cd/m2

Resolution

640*480

Video format

MPEG4/AVI

Picture format

MPEG

Memory card

4G(up to 32G)

USB interface

USB output

Character input

Video

Resolution

720*576

Meter counter

The distance will be displayed on the screen (Optional)

Cable

Length

30-140m (optional)

Bracket

Centering

To make sure the camera is in the center of the pipe

Power supply

chargeable Battery

DC12V/14.8V 13500mah


Details:

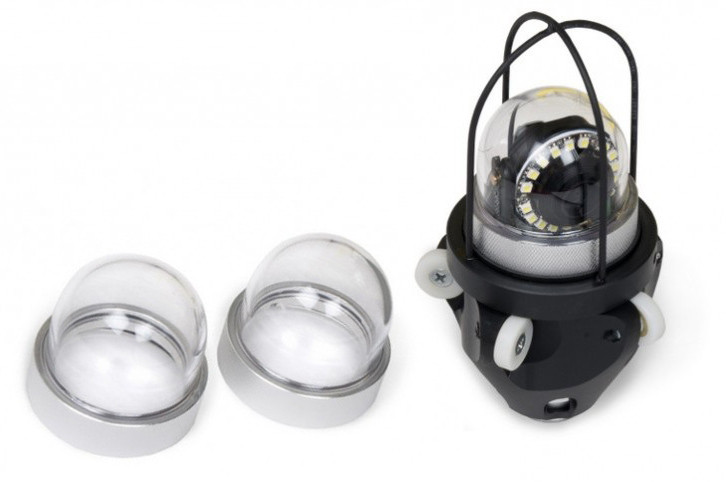

SD-1058 Camera Head


Endoscope drain pipe inspection camera SD-1050 for contractor companies


  ●  Designed for pipes DN 60 - 400mm

  ●  1/4” 700TVL SONY CCD camera sensor

  ●  Camera diameter:58mm

  ●  360 pan, 180 tilt

  ●  Auto leveling:always upright image

  ●  Waterproof level: IP68

  ●  18 LED lights

  ●  Material: Aluminum

● Auto focus





5.7" Sunlight presentable LCD Monitor


Endoscope drain pipe inspection camera SD-1050 for contractor companies









  ●  Brightness: 500cd/㎡

  ●  Sunlight Viewable TFT Screen clearly displays details inside pipes

  ●  One stop control software integrated: Camera rotation,video recording,snapshots, control lighting system,ect.

  ●  Built-in 8500mAh rechargeable and changeable battery

  ● Text overlay without extra keyboards to profile pipe inner conditions

  ●  USB datas





Camera Centering Bracket


Endoscope drain pipe inspection camera SD-1050 for contractor companies

  ●  To ensure center-position of the camera head inside pipes

  ●  Diameter 95, 150, 250 brackets available

  ●  Fast installation and removal in one minute









IPS was started with a simple goal ,to provide our Chinese customers ,who were engaded in water monitoring and/or municipal sewer line inspection and rehabilitation ,with affordable devices.

        *  In 2009,we began our business with self-made multi-direction endoscope.But it was not very sucessful at that time.

        *  In 2013,we came back with SINGA crawlers,which was equipped with powerful illumination to capture and record pipe defects.

        *  In2015,we added explosion-proof and motor-driven cable drum to our carriage.And setted out to develop our own UV curing,3D sonar/laser system.

Thanks to continuous efforts in customers' oriented technical innovations and excellent service ,IPS has witnessed a series of huge success.Now we are the leading manufacturer of pipeline CCTV inspection equipment in China ,and we are ready to lead international pipe inspection&rehabilitation industry in the future.
