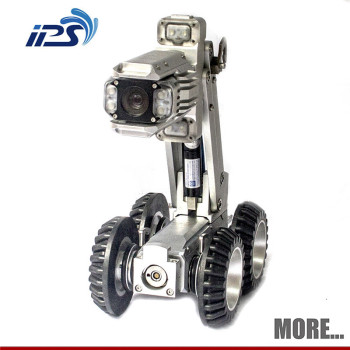

S100 Underwater Sewer Pipe Inspection Camera Robot For DN 100-600 Lateral
- group name
- Pipe Crawler Robot S100
- Min Order
- 1 piece
- brand name
- SROD
- model
- S100
- Nearest port for product export
- Shenzhen Fob, Hongkong Fob
- Delivery clauses under the trade mode
- FOB, CIF, EXW, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Escrow
- Export mode
- Export through agents
- update time
- Mon, 08 Jun 2020 15:50:16 GMT
Paramtents
Type Analog Camera, Pipe Inspection Robot
Style Bullet Camera
Sensor CCD
Technology Pan / Tilt / Zoom
Special Features Waterproof / Weatherproof
Camera Head 50mm Pan&Tilt camera head
Image sensor 1/4 Sony CCD
Camera Horizontal resolution 540 TVL
Monitor 12.1'' touch LCD display
Memory 64G hard disk
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
This high performance Pipe Inspection Robot can be used to inspection laterals from 100mm to 600mm in diameter.The SD-1050 Camera heads features a 540TVL P/N sensor to capture detailed image of pipe defects,including poor joints,structure fractures,and root intrusions.Inspection videos are transferred from the sensor to the state-of-heart-art monitor via a compact cable drum system.And the data is compressed into H.264 video format,which can be used to generate reports with our integrated reporting software or third party software.The winch will automatically wind up or unwind the cable according to the feedback of a precice tension sensor.And this means the carriage can be easily feed into drainage lines from manhole.
| Technical data | |
| Product classification | Pan and tilt Pipe Inspection Robot |
| Inspection range | approx.DN 200 and up |
| Dimension | ø 90MM |
| Weight | approx. 7 kg |
| Tractor operation | yes |
| Camera reorient | Yes |
| Focus | Manual focus |
| Lighting | 14 led lights. |
| Protection class | IP 68 |
| Permissible ambient temperature | -20 to 55 celsius |
| Test pressure | 10-15PSI |
| Pressure monitoring | Integrated pressure sensor continuously monitors inner pressure |
| Panning range | 180-degree endless pan |
| Viewing range | +/-120° |
| Angle of rotation | Continuous |
| Sensor (inch) | 1/4“ |
| Sonde | no |
| TV standard | HD |
| Explosion protection | optional |
| Image resolution | 540TVL |
Detail Image:
S100 Pipe Inspection Robot without Camera-lift
* For pipe DN100-600
* Steerable to climb over obstacles and bend pipes
* Turn Radius:down to 0.0”
* Sensors:pitch, slope, pressure
* Pressure Rating:1 ba
SD-1050 Camera Head With IP68 Waterproof Capacity
* Camera Sensor:color Sony ¼” CCD
* Resolution:540TVL
* Pressure Rating:1 bar
* Focus:auto shutter; manual focus
* Illumination:controllable shadowless 14 led ring
* Articulation:180-degree tilt; infinite pan
* Sensing:pressure
* Size:diameter: 52mm;length: 123mm
* Weight:1.6 lb (0.5 kg)
* Material:aluminum
Auto/Manual Cable Drum,controlled via wireless Joysticks.
* Optional manual or auto cable winding up component;
* Material: Aviation aluminum+PC plastic
* Meter-counter:Distance constantly displayed on screen;erro<10cm
* Waterproof: IP53;
* Reinforced semi-rigid cable;
* Load capacity:150KG.OD:9mm
* 120m standard cable length(100-300m customizable)
* Size: 70cm*44cm*48cm
* With emergency stop switch
12.1" Sunlight Presentable LCD Touch Monitor
IPS was started with a simple goal ,to provide our Chinese customers ,who were engaded in water monitoring and/or municipal sewer line inspection and rehabilitation ,with affordable devices.
* In 2009,we began our business with self-made multi-direction endoscope.But it was not very sucessful at that time.
* In 2013,we came back with SINGA crawlers,which was equipped with powerful illumination to capture and record pipe defects.
* In2015,we added explosion-proof and motor-driven cable drum to our carriage.And setted out to develop our own UV curing,3D sonar/laser system.
Thanks to continuous efforts in customers' oriented technical innovations and excellent service ,IPS has witnessed a series of huge success.Now we are the leading manufacturer of pipeline CCTV inspection equipment in China ,and we are ready to lead international pipe inspection&rehabilitation industry in the future.
